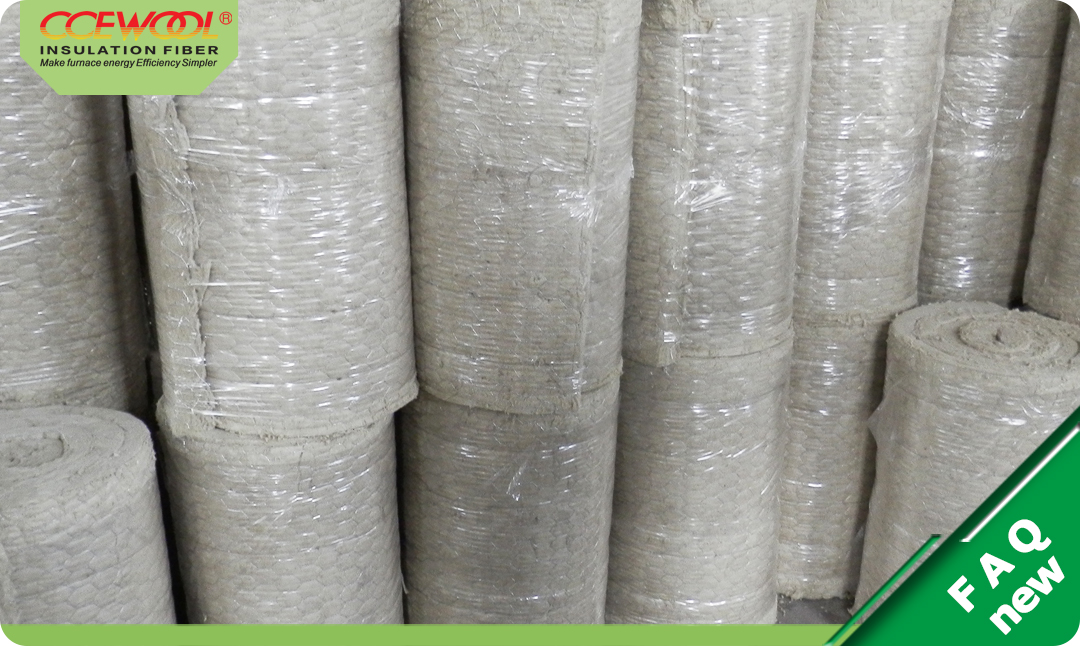

CCEWOOL® Stone Wool Blanket is made from inorganic mineral fibers and can be bent, wrapped, and cut on site to match different equipment geometries. It is available as both standard Stone Wool Blanket and Stone Wool Blanket with Wire Mesh to accommodate different equipment shapes, installation orientations, and fastening methods. The product is also available in 550°C and 750°C temperature grades to meet different thermal insulation requirements.
Flexible Wrapping for Curved and Complex Industrial Equipment
CCEWOOL® Stone Wool Blanket is primarily manufactured from natural mineral raw materials such as basalt and diabase. The raw materials are melted at high temperature and processed through centrifugal fiberization, fiber collection, and forming to produce a flexible insulation blanket.
The fine inorganic fiber structure helps limit heat transfer while forming a flexible insulation layer with controlled thickness and density.
Compared with rigid boards, Stone Wool Blanket can be bent, wrapped, and cut to match equipment surfaces, making it better suited to cylindrical equipment, large-diameter structures, elbows, and other non-flat areas.
This flexibility makes Stone Wool Blanket particularly suitable for industrial insulation projects that require large-area continuous coverage and on-site dimensional adjustment.
550°C and 750°C Grades for Different Industrial Insulation Requirements
CCEWOOL® Stone Wool Blanket is made from basalt and other natural mineral raw materials and is available in 550°C and 750°C temperature grades. It can also achieve A1 non-combustible classification, providing both thermal insulation and fire-performance benefits.
550°C Stone Wool Blanket is better suited to medium-temperature applications such as general industrial equipment, storage tanks, ducts, and process piping, where the main objectives are to reduce heat loss and control equipment surface temperature.
750°C Stone Wool Blanket is more suitable for higher-temperature applications, including boiler exteriors, high-temperature piping, furnace exteriors, hot-air ducts, flues, and the external insulation of heat-treatment equipment.
Depending on actual operating conditions, both temperature grades can be supplied in different thicknesses, densities, and either standard or wire-mesh-reinforced constructions to better match project temperature, equipment structure, and installation requirements.
Different Constructions for Different Installation Methods
In addition to temperature conditions, CCEWOOL® offers both standard Stone Wool Blanket and Stone Wool Blanket with Wire Mesh.
Standard Stone Wool Blanket provides greater flexibility and is suitable for storage tanks, large-diameter pipes, cylindrical equipment, and other areas requiring bending, wrapping, and on-site cutting.
Stone Wool Blanket with Wire Mesh incorporates metal mesh on the blanket surface to provide additional mechanical restraint. It is better suited to vertical surfaces, large-area installations, and equipment insulation systems requiring tying or mechanical fastening.
In general, standard Stone Wool Blanket emphasizes flexibility and wrapping adaptability, while Stone Wool Blanket with Wire Mesh provides enhanced fastening support and structural stability. The appropriate construction should be selected according to equipment geometry, installation orientation, and fastening method.
Where Is Stone Wool Blanket Commonly Used?
Stone Wool Blanket is primarily used for industrial equipment, piping, and other insulation areas requiring flexible wrapping.
Industrial Equipment Insulation
In industrial applications, Stone Wool Blanket is commonly used for boilers, storage tanks, ducts, flues, heat exchangers, and other large industrial equipment.
Its flexible structure allows it to conform to equipment surfaces through bending, wrapping, and on-site cutting, making it especially suitable for cylindrical equipment, curved structures, and large-area continuous insulation.
Piping and Curved-Surface Insulation
For large-diameter piping, elbows, and other non-flat structures, Stone Wool Blanket can be wrapped to match the curvature of the equipment and installed together with cladding, bands, or other fastening systems.
For vertical surfaces, large equipment, or areas requiring additional mechanical fastening, Stone Wool Blanket with Wire Mesh can be selected to improve structural stability during installation.
CCEWOOL® Stone Wool Blanket is available in different temperature grades, thicknesses, densities, and structural configurations for a wide range of industrial insulation projects. By combining standard blanket and wire-mesh-reinforced constructions, CCEWOOL® can provide insulation options better matched to the actual installation conditions of equipment, storage tanks, ducts, and piping systems.
Post time: Sep-21-2026
