Bio Soluble Fiber Shapes for the Telecommunications Industry

Features:

Classification Temperature: 1200°C (2192°F)
Chemical Composition: Silica, Calcium Oxide, Magnesium Oxide

CCEWOOL® Bio Soluble Fiber Vacuum Formed Shapes for the Telecommunications Industry are customized Fabrication products developed for thermal insulation and structural support inside communication cabinets. Made from our own high-purity AES bio-soluble fiber, the parts are produced through vacuum forming and precision CNC machining according to customer drawings and structural requirements.


Enquiry Now Bio Soluble Fiber Shapes for the Telecommunications IndustryDownload Technical data sheet

Product Introduction

CCEWOOL®
Vacuum-Formed Ceramic Fiber Shapes

CCEWOOL® Bio Soluble Fiber Vacuum Formed Shapes for the Telecommunications Industry are customized Fabrication products made from high-purity AES bio-soluble fiber. Using vacuum forming and precision CNC machining, the parts can be produced according to customer drawings and cabinet structures for thermal insulation and structural support in limited installation spaces.

With a high-density structure of 360 kg/m³ and controlled dimensional accuracy, the product provides stable insulation, good mechanical strength, and reliable installation fit. It is particularly suitable for areas such as the bottom of battery racks, where both insulation and support are required.

The AES fiber system also offers low-biopersistence characteristics and improved occupational and environmental compatibility compared with conventional aluminosilicate fiber products, supporting applications with higher material safety and compliance requirements.

Professional Solutions for Your High-Temperature Projects

CONTACT US

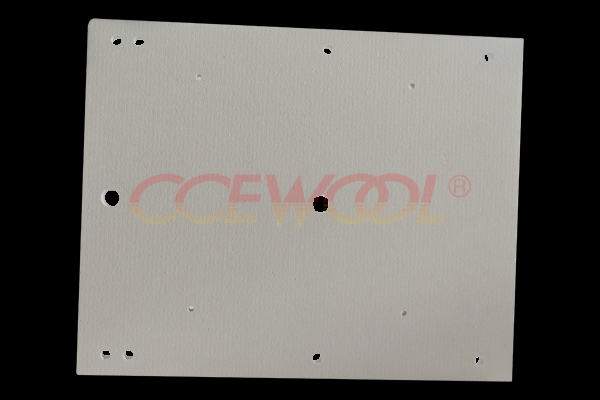

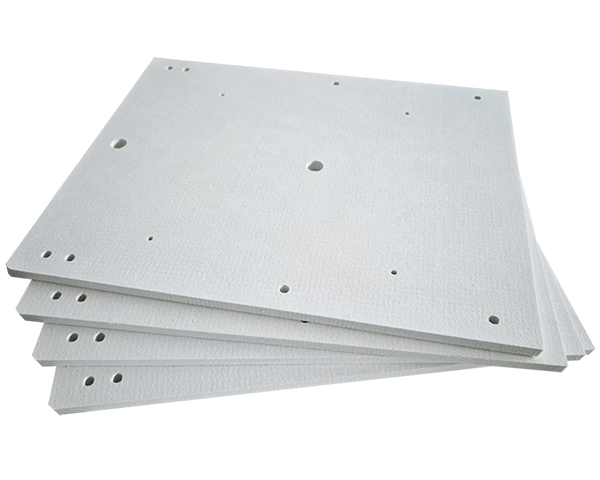

CCEWOOL® Bio Soluble Fiber Shapes for the Telecommunications Industry
Bio-Soluble-Fiber-Shapes-for-the-Telecommunications-Industry-03

Bio Soluble Fiber Shapes for the Telecommunications Industry

Classification Temperature: 1200°C
Application Industry: Telecommunications Industry
Application Area: Inside Communication Cabinets
Density: 360 kg/m³

Product Features



PRODUCT FEATURES

Characteristics

Providing you with reliable reference to key performance advantages.

Low-Biopersistence Fiber with Precision Fabrication

CCEWOOL® Bio Soluble Fiber Shapes for the Telecommunications Industry combine low-biopersistence AES fiber with precision vacuum forming and machining, providing accurate dimensions, reliable thermal insulation, and stable structural support for communication cabinet applications.

01

High dimensional accuracy

02

Low shrinkage and good dimensional stability

03

Excellent thermal insulation

04

High-density structure: 360 kg/m³

05

Lightweight and easy to install

06

Low-biopersistence AES fiber system

Technical Data Sheet

Providing you with professional and clear product parameters for confident selection.

Download

Application Introduction

Application

Providing you with application solutions better suited to specific operating conditions.

▶ Battery Rack Bottom Insulation Modules
Installed between the battery rack and cabinet base structure to form a stable insulation layer and reduce heat transfer toward the battery area.



▶ Retrofit Communication Cabinet Components
Customized according to existing cabinet drawings for accurate structural matching, efficient installation, and reliable fixation.



▶ Battery System Thermal Isolation Layers
Used between battery systems and cabinet structures to improve local thermal management and help reduce heat accumulation.



▶ Precision Custom-Shaped Support Components
Suitable for confined or structurally complex areas requiring both thermal insulation and mechanical support.
