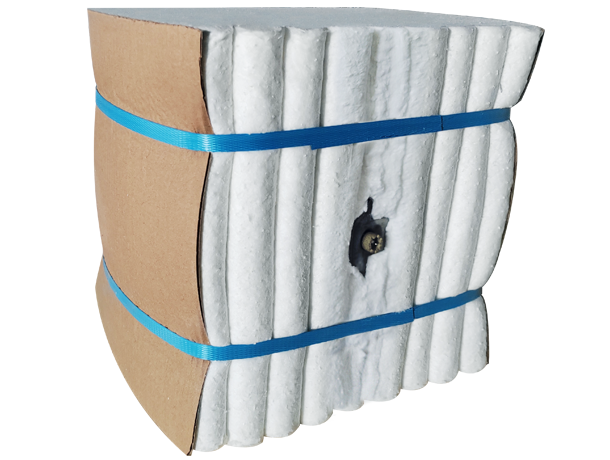

Bio Soluble Fiber Module

Features:

Classification Temperature: 1200°C (2192°F), 1300°C (2372°F)

Chemical Composition: Silicon, Calcium, Magnesium (AES)

CCEWOOL® Bio Soluble Fiber Module is made from high-quality AES bio-soluble fiber blanket through precision compression forming. It offers low thermal conductivity, low heat storage, and stable performance up to 1300°C (2372°F), providing reliable insulation for industrial furnaces, boilers, kilns, and other high-temperature equipment.


Enquiry Now Bio Soluble Fiber ModuleDownload Technical data sheet

Product Introduction

CCEWOOL®
Bio Soluble Fiber Module

CCEWOOL® Bio Soluble Fiber Module is made from AES bio-soluble fiber blanket through precision compression forming. It offers low thermal conductivity, low heat storage, and stable performance up to 1300°C (2372°F).

Its compressed fiber structure allows adjacent modules to fit tightly during installation, helping reduce gaps, thermal bridges, and heat loss under thermal cycling conditions.

Available in multiple module designs and anchoring systems, it is widely used in furnaces, boilers, kilns, and other high-temperature equipment for hot-face and backup insulation.

Its monolithic structure and strong installation compatibility make it suitable for integrated.

Module Types:S-Fold Module、U-Fold Module、L-Type Module、Stack Module.



Professional Solutions for Your High-Temperature Projects

CONTACT US
CCEWOOL® Bio Soluble Fiber Module

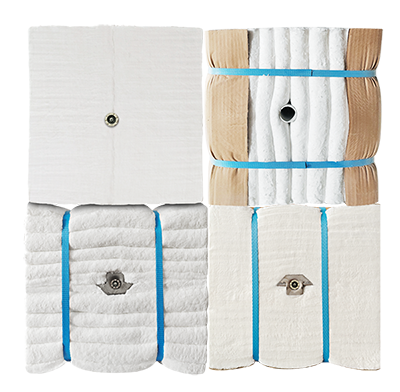

CCEWOOL® Bio Soluble Fiber Module Types

S-Fold Module

The S-Fold Module uses a continuous corrugated folding structure with uniform fiber arrangement and strong resilience. It helps compensate for thermal shrinkage during furnace operation and is suitable for large lining areas.

CCEWOOL® Ceramic Fiber Module

U-Fold Module

The U-Fold Module uses a U-shaped folding structure that keeps the fiber layers evenly arranged, improving overall module stability for general furnace lining applications.

CCEWOOL® Ceramic Fiber Module

L-Type Module

The L-Type Module is based on the U-Fold structure with adjusted fiber orientation, making it more suitable for furnace edges, corners, and transition areas.

CCEWOOL® Ceramic Fiber Module

Stack Module

The Stack Module is formed by stacking fiber blanket layers in a controlled arrangement, providing uniform fiber orientation and good structural integrity for lining areas requiring higher installation stability.

Advantages of CCEWOOL® Bio Soluble Fiber Module

Low-Biopersistence AES Fiber for Safer High-Temperature Linings



Made from bio-soluble AES fibers with increased solubility in physiological fluids, the module provides a more suitable insulation solution for long-term industrial furnace applications requiring higher occupational health and environmental compliance.

Excellent Thermal Shock Resistance for Frequent Start-Stop Operation



Optimized fiber arrangement and compression ratio allow the module to withstand rapid heating, cooling, and repeated thermal cycling without becoming brittle or powdering, making it suitable for furnaces with large temperature fluctuations.

Low Linear Shrinkage for Stable Long-Term Service



Made from high-purity bio-soluble fiber blanket with standardized pre-compression, the module maintains good dimensional stability during long-term high-temperature operation, helping reduce deformation, detachment, and maintenance downtime.

Modular Design for Efficient Installation and Better Fit



Multiple module structures and anchoring systems are available to match different furnace designs, enabling fast installation and tight fitting for both new furnaces and retrofit projects.

CCEWOOL® Bio Soluble Fiber Module

Product Features



PRODUCT FEATURES

Characteristics

Providing you with reliable reference to key performance advantages.

Stable Performance for High-Temperature Furnace Linings

CCEWOOL® Bio Soluble Fiber Module is designed for high-temperature furnace linings that require low-biopersistent AES fibers, low heat storage, excellent thermal shock resistance, and reliable long-term stability.

01

High-temperature stability up to 1300°C

02

Low thermal conductivity and low heat loss

03

Low heat storage for rapid heating and cooling

04

Excellent thermal shock resistance

05

Lightweight structure

06

Binder- and lubricant-free

07

Excellent chemical resistance and contamination resistance

08

High resistance to gas erosion

09

High tensile strength

10

Modular design for easy installation

11

Multiple connection and anchoring systems available

12

Built-in stainless steel anchors

13

Low heat loss and low heat storage for improved energy efficiency

14

Suitable for rapid furnace cycling

Technical Data Sheet

Providing you with professional and clear product parameters for confident selection.

Download

Application Introduction

Application

Providing application solutions tailored to your needs.

Industrial Furnaces & Heat-Treatment Equipment
Heat-treatment furnaces; Forging furnaces; Annealing furnaces; Stress-relieving furnaces; Carbide heating furnaces

Ceramics & Refractory Industry
Ceramic tunnel kilns; Ceramic intermittent kilns; Ceramic industrial furnace linings

Steel & Metallurgical Industry
Steel industry furnace linings; Ladle preheating stands; High-temperature heating and holding equipment

Energy & Utilities
Boiler and incinerator linings; Chimney and pipeline insulation for waste heat boilers in power generation

Steel Industry
Furnace linings for reheating, annealing, and soaking furnaces; Furnace structures requiring high-temperature sealing and integrated thermal insulation

Petrochemical & Refining
Process heaters; Ethylene cracking furnaces; Ammonia, hydrogen, and methanol reforming units; Delayed coking units; Refinery heaters; Flare stack insulation linings

Flue Gas & Piping Systems
Chimney linings; Flue linings; High-temperature process piping lining

Furnace Structural Areas
Furnace door linings; Furnace covers and removable section insulation linings
