LTC Fiber Board

Features:

Temperature Grade: 1260°C (2300°F), 1400°C (2552°F)

Chemical Composition: Alumina, Silica, (Zirconia)

CCEWOOL® LTC Fiber Board is a high-performance insulation board developed with micro-/nano-structural control and infrared opacification technology to reduce high-temperature heat transfer. It combines ultra-low thermal conductivity with good structural strength, dimensional stability, and machinability, making it suitable for high-temperature insulation, energy-saving upgrades, and Fabrication processing.




Enquiry Now LTC Fiber BoardDownload Technical data sheet

Product Introduction

CCEWOOL®
LTC Fiber Board

Designed for ultra-low thermal conductivity,

energy-efficient insulation, and precise Fabrication.

CCEWOOL® LTC Fiber Board combines ceramic fiber technology with micro-/nano-structural control and infrared opacification to reduce high-temperature heat transfer. Compared with conventional lightweight refractory insulation materials, it can provide approximately 1.2–1.5 times higher insulation efficiency at the same thickness.

The board offers ultra-low thermal conductivity, good structural strength, dimensional stability, and machinability. It supports cutting, drilling, grooving, and assembly for Fabrication applications requiring precise fitting and reliable installation.

CCEWOOL® LTC Fiber Board provides an efficient insulation solution for high-temperature equipment and energy-saving upgrades.

Professional Solutions for Your High-Temperature Projects

CONTACT US

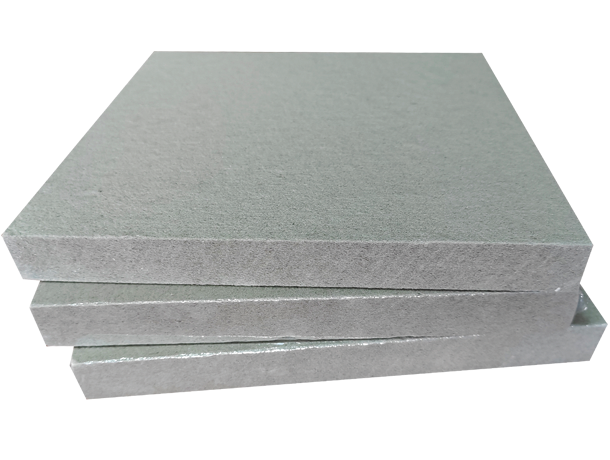

CCEWOOL®-LTC-Fiber-Board-1-1

Advantages of CCEWOOL® CCEWOOL® LTC Fiber Board

Ultra-Low Thermal Conductivity

With thermal conductivity as low as ≤0.10 W/m·K, the board helps reduce heat loss and improve insulation efficiency at the same thickness.

Stable High-Temperature Performance

Micro-/nano-structural control and infrared opacification help reduce conductive, convective, and radiant heat transfer for stable long-term insulation.

Ceramic Fiber Bulk for Vacuum Formed Shapes

Good Strength and Machinability

The board offers good strength and dimensional stability, and is easy to cut, drill, and install for retrofit and Fabrication applications.

Higher Insulation Efficiency

Compared with conventional ceramic fiber board, it can help lower casing temperatures and improve overall system energy efficiency.

Product Features



PRODUCT FEATURES

Characteristics

Providing you with reliable reference to key performance advantages.

Ultra-Low Thermal Conductivity for Energy-Efficient Insulation

CCEWOOL® LTC Fiber Board is specially developed for high-temperature insulation applications that require ultra-low thermal conductivity, reduced heat loss, stable structural performance, and improved energy efficiency.

01

Ultra-low thermal conductivity

02

Low heat storage

03

High tensile strength

04

Excellent thermal shock resistance

05

Excellent corrosion resistance

06

Lightweight and easy to install

07

Excellent chemical stability

Technical Data Sheet

Providing you with professional and clear product parameters for confident selection.

Download

Application Introduction

Application

Providing you with application solutions better suited to specific operating conditions.

Refractory linings

Backup insulation behind dense refractories

Backup insulation behind refractory bricks and castables

Hot-face linings for ceramic kilns, box furnaces, and petrochemical furnaces

Industrial heat-treatment equipment

Rigid high-temperature gaskets

High-temperature protective covers

Flue and chimney insulation linings

Molten metal vessel covers

Hot-gas duct linings

Industrial insulation covers and insulation layers

Industrial combustion chambers

Light-industrial combustion chambers
