[Copy] Ceramic Fiber Bulk for Vacuum Formed Shapes

Features:

Temperature grade: 1260°C (2300°F), 1430°C (2600°F)
Chemical Composition: Alumina, Silica

CCEWOOL® Ceramic Fiber Bulk for Vacuum Formed Shapes features fine, uniformly distributed 2–4 μm fibers with no lubricant added, making it a high-purity raw material ideal for ceramic fiber vacuum formed shapes and other Fabrication-processed high-temperature insulation components.


Product Introduction

CCEWOOL® Ceramic Fiber Bulk for Vacuum Formed Shapes

CCEWOOL® Ceramic Fiber Bulk for Vacuum Formed Shapes is manufactured using an advanced production process. Selected high-purity raw materials are fully melted in an industrial electric furnace to form a homogeneous melt, which is then fiberized by a compressed-air blowing process. During this process, the melt is rapidly attenuated and solidified into fine, elongated fibers, and then collected through a fiber collection system to produce high-quality blown ceramic fiber bulk.

The fiber diameter of this product is as fine as 2–4 μm, with uniform fiber distribution. No lubricating oil is added during production, resulting in high purity and excellent forming suitability. It is especially suitable for the manufacture of various ceramic fiber vacuum formed shapes.

At the same time, thanks to its stable fiber structure and excellent consistency, CCEWOOL® Ceramic Fiber Bulk for Vacuum Formed Shapes is also an ideal base material for Fabrication processing. It can be used in the production of vacuum formed components, custom-shaped parts, and other monolithic high-temperature insulation components, better meeting the raw material requirements of complex structural design and precision post-processing.

Advantages of

CCEWOOL® Ceramic Fiber Bulk
for Vacuum Formed Shapes

Designed for stable forming, dense structure,

and reliable high-temperature performance.

Compressed-Air Fiberization

  • More uniform fiber structure for stable vacuum forming and better dimensional consistency.

Designed for Vacuum Forming

  • Optimized for complex and high-precision ceramic fiber shaped parts.

Fine 2–4 μm Fibers

  • Fine and uniform fibers help fill complex molds and create denser formed parts.

No Lubricant Added

  • No lubricating oil is added, reducing organic residues and improving long-term performance.

Product Specification

Technical Data Sheet

Providing you with professional and clear product parameter information.

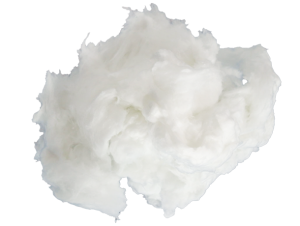

CCEWOOL®-Ceramic-Bulk-Fiber

CCEWOOL® Ceramic Fiber Bulk for Vacuum Formed Shapes

温度分类

1260℃ (2300℉)

1430℃(2600℉)

颜色

白色的

白色的

纤维直径(μm)

2-4

2-4

镜头含量(%)

≤15

≤12

化学成分(%) 氧化铝

≥43

≥35

二氧化硅

≥54

≥49

ZrO2

-

≥15

Al2O3+SiO2+ZrO2

-

≥99

包装

真空塑料袋+托盘。



Product Advantages

Characteristics

Providing you with reliable reference to key performance advantages.

Stable Performance for Vacuum Formed Shapes

CCEWOOL® ceramic fiber bulk is designed for forming applications that require clean fiber structure, reliable thermal performance, and long-term high-temperature stability.

01

Lubricant-free

02

Low thermal shrinkage

03

High forming strength

04

Low heat storage

05

Low thermal conductivity

06

Excellent chemical stability

07

Outstanding high-temperature stability

Reliable reference for industrial use

Application Introduction

Application

Providing you with application solutions better suited to specific operating conditions.

Ideal raw material for manufacturing ceramic fiber vacuum formed shapes
